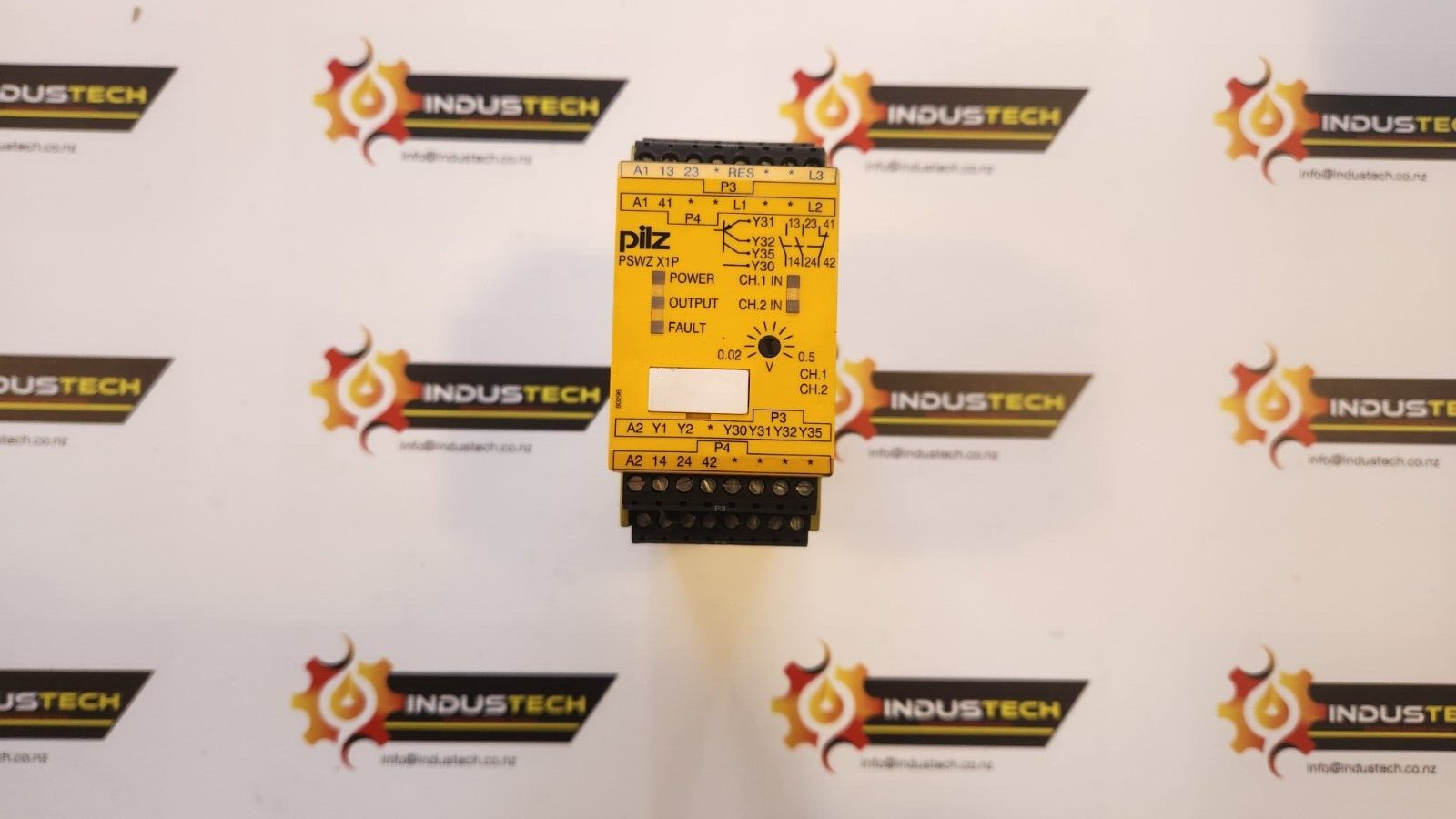

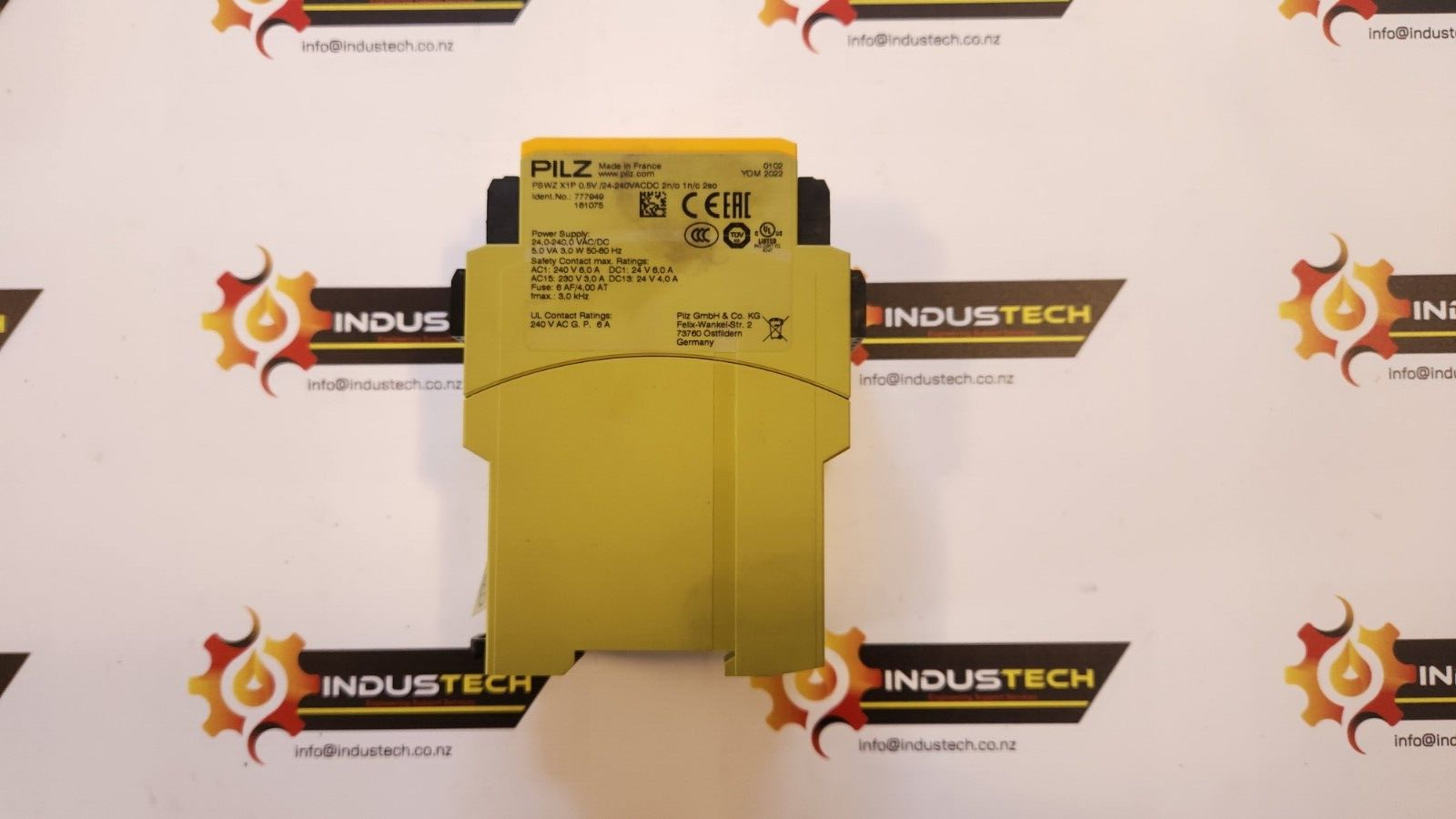

Pilz PSWZ X1P 0.5V/24-240VACDC 777949 Safety Relay | 2NO/1NC/2SO | Used

The Pilz PSWZ X1P 0.5V/24-240VACDC (777949) is a versatile safety relay designed for universal voltage operation across a wide AC/DC range. With 2 N/O, 1 N/C, and 2 safety outputs, it provides reliable emergency stop and safety gate monitoring for industrial machinery.

Key Benefits

• Wide voltage range (24–240V AC/DC) for maximum installation flexibility
• 2 N/O + 1 N/C + 2 SO output configuration for versatile safety circuit design
• Suitable for emergency stop, safety gate, and light curtain monitoring
• Compact DIN-rail mount for easy panel integration
• Meets IEC 62061 SIL 3 and EN ISO 13849-1 PLe requirements

Features

• Model: PSWZ X1P 0.5V/24-240VACDC
• Part Number: 777949
• Supply Voltage: 24–240V AC/DC
• Output Contacts: 2 N/O, 1 N/C, 2 Safety Outputs
• Safety Rating: SIL 3, PLe, Cat. 4
• Manufacturer: Pilz

Condition: Used — Good working condition

This is for 1 Unit

What you see in the product images is exactly what you receive — no surprises.

Note: Customs fees and import duties for international orders are the responsibility of the buyer.
